Features Highlights:

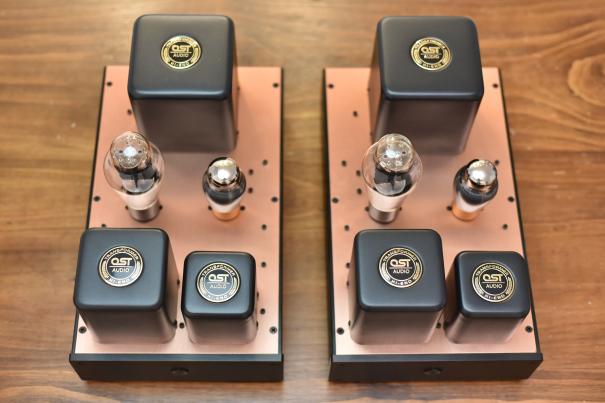

-Each block contains an 100VA Power transformer, an 10H choke and an 35W output transformer
-All of the B+ and filament voltages are regulated by LM317
-Soft start for filament voltages (to prevent inrush current from damaging the filaments)
-starts from 1.9V to 5V and 6.3V in 10 seconds
-Delayed soft start for B+ (to pre-heat the filaments before supplying B+ for prolonged tube life)
-starts from 20V to 376V in 30seconds after 30seconds delay upon power ON
-Timer function achieved by 555 IC
-Solid state relay for B+ for prolonged life
-Zero-crossing detection (achieved by the solid state relay)
-Plenty of RC snubber networks used to reduce damping and noise
