Usage:
-Music server / streamer / player / endpoint
-Supported OS: Volumio / Moode Audio / DietPi (LMS & Squeezelite) / Roon Endpoint
(pre-built images will be provided upon purchase)
Features:

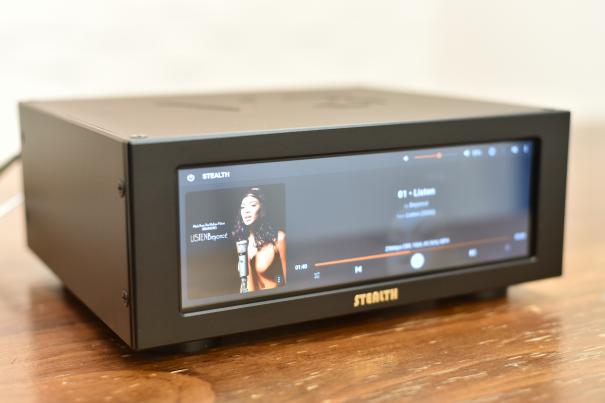

-7.9" HDMI 400x1280 high resolution touchscreen
-Galvanically isolated touchscreen and Ethernet (10/100/1000 Base-T)
-Individual power supply for the touchscreen and Pi4
-Individual power supply for internal HATs, USB devices or as a LPS for external devices (configurable)

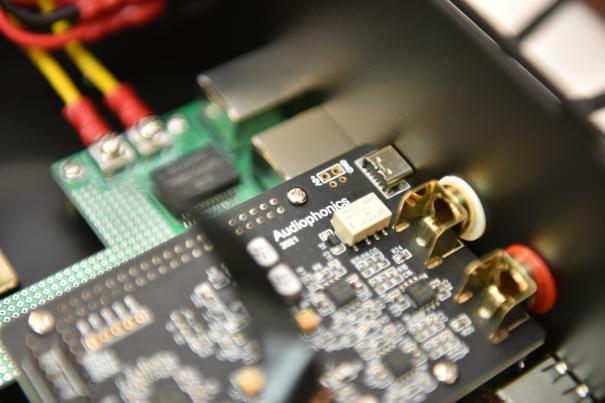

-Native support for i-Sabre and Monolisa ES9038Q2M DAC HAT
-Semi-native support for Allo Boss DAC 2
-Enhanced thermal management

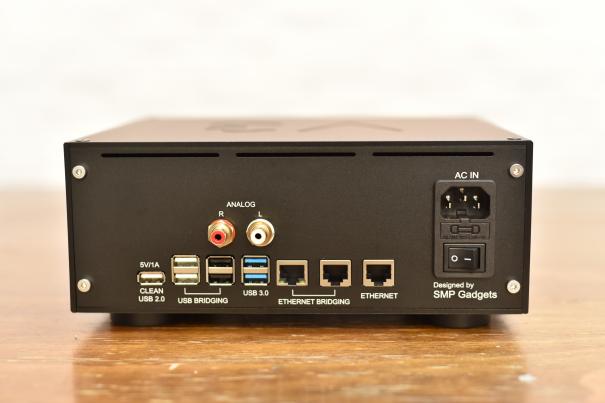

Case:
-Aluminum alloy with CNC machining and laser cut, sandblasted and anodized.
-uSD card opening at the bottom
-Dimensions: 240(W) x 220(D) x 100(H)
-5 types of back plate options available

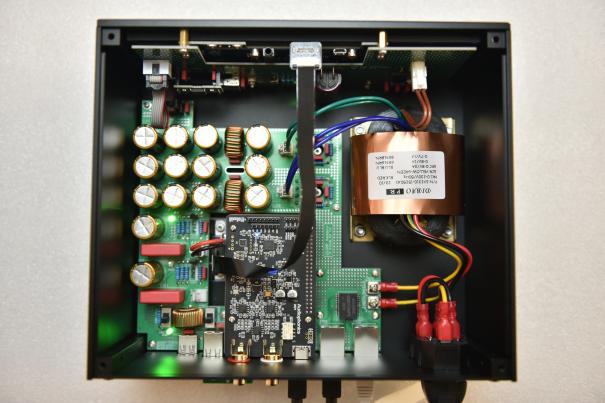

Power:
-40VA audiophile grade R-type power transformer with primary shielding

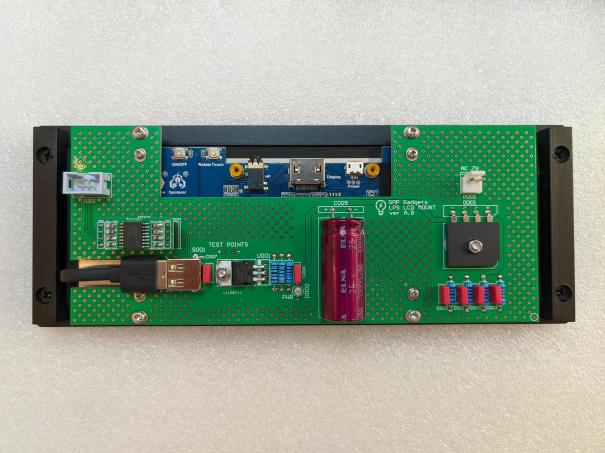

-3x individual high precision, low dropout and large current LPS
-14x Nichicon FW series capacitor array*
-RC snubber networks
-Ultra low ESR, CLC filtering, WIMA MKP10 decoupling
